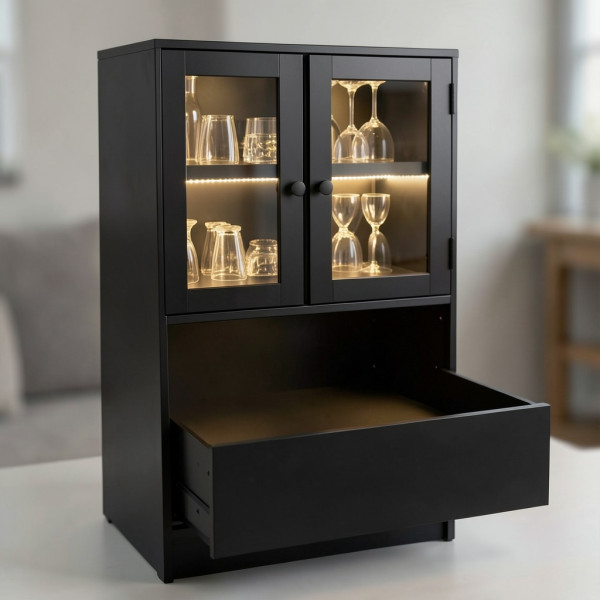

Black MDF Bar Cabinet with LED Shelves and Pull-Out Middle Shelf

Black MDF Bar Cabinet with LED Shelves and Pull-Out Middle Shelf

Build a sleek black bar cabinet made from MDF featuring two LED-lit top shelves enclosed behind framed glass doors, and a convenient pull-out middle shelf. This project balances functionality and style, perfect for storing your bar essentials and displaying glassware at home.

Intermediate 8 hours $80
Step-by-Step Instructions
1. Cut MDF panels according to dimensions: two side panels (140cm x 41cm), top and bottom panels (39cm x 41cm), back panel (39cm x 140cm), shelves (top two shelves approx. 39cm x 38cm), middle shelf for pull-out (39cm x 38cm).
2. Assemble the cabinet frame by attaching the side panels to the bottom panel with wood glue and screws.
3. Attach the top panel to complete the rectangular frame.
4. Install the back panel by screwing or gluing it to the back edges of the frame.
5. Sand all surfaces and edges smooth.
6. Paint the entire cabinet with primer, let dry, then apply two coats of black matte paint.
7. Prepare the top two shelves to house LED strips: attach LED strip lights under the shelf edges, run wires neatly towards the back for power.
8. Build or purchase a framed glass door sized to fit the opening covering the top two shelves. If building, cut thin MDF strips to frame the glass pane securely.
9. Install cabinet hinges on the side of the frame and attach the glass door.
10. Attach a handle or knob to the glass door.
11. Install drawer slides inside the cabinet frame at the height for the middle shelf.
12. Attach corresponding slides to the middle shelf and insert it to test smooth pull-out function.
13. Place the two LED-lit shelves inside the top section behind the glass door.
14. Connect LED strips to power adapter and test lighting.
15. Final touch: clean glass, check all screws, and ensure smooth operation of the pull-out shelf.
Materials
MDF boards (total approx. 140cm tall x 39cm wide x 41cm deep dimensions)
Black matte paint and primer
LED strip lights with power adapter (for two shelves)
Framed glass door kit (or glass pane + wooden strips for framing)
Drawer slides (for pull-out shelf)
Wood screws and wood glue
Sandpaper (medium and fine grit)
Cabinet hinges (for glass door)
Handle/knob for glass door
Measuring tape
Pencil
Saw (circular or hand saw)
Drill with screwdriver bits
Paintbrush and/or roller
Clamps (optional)
