Step-by-Step Instructions
1. Plan the enclosure dimensions: measure your assembled electronics to determine the internal space needed, including some extra room for wiring and ventilation.

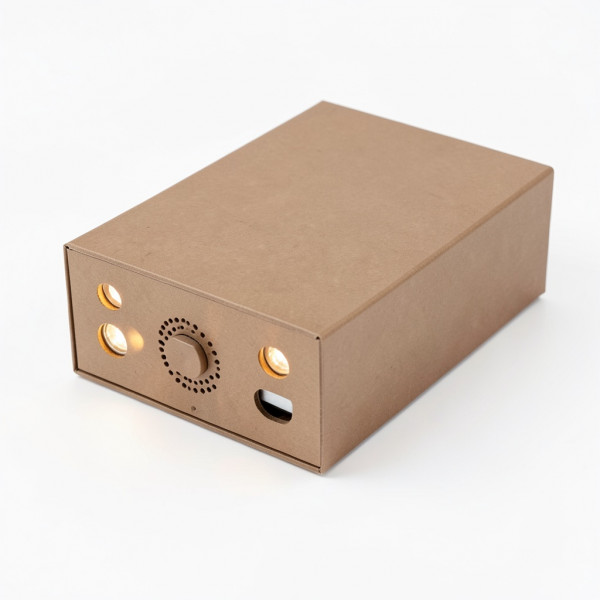

2. Sketch the enclosure design on paper, including front panel cutouts for LEDs, push button, buzzer sound holes, and sensor cable access.
3. Transfer the design onto MDF sheets with a pencil and ruler.
4. Cut MDF pieces according to the design: front panel, back panel, two side panels, top, and bottom.
5. Sand all cut edges smooth with sandpaper.
6. Drill holes in the front panel for LEDs, push button, buzzer sound, and any cables (voltage/current sensor wires).
7. Assemble the box by gluing the edges together; use wood screws for additional strength if desired.
8. Allow glue to dry fully (usually a few hours).
9. Paint or varnish the enclosure to your liking and let it dry.
10. Mount your electronics inside the enclosure using double-sided tape or mounting pads, ensuring sensors and cables align with the holes.
11. Test all components to ensure accessibility and functionality.
12. Close the enclosure and secure if needed, leaving easy access for reset button and sensor adjustments.
